target_performance.cfg
The target_performance.cfg is an optional file for aircraft, and is never required for any other kind of SimObject. It is used to define the performance characteristics of the aircraft. Below you can find information on the different sections used in the target_performance.cfg file as well as what parameters and values are expected within them. However it should be noted that that the information contained in this file has no influence on the aircraft flight behavior, and is instead used to compare computed performance versus expected performance (which can be found in the POH or from industrial or academic data).
All parameters in this file can take one or two values where:
- The first value is the target value.
- The second value is optional and is a Percent Over 100 providing the error tolerance when comparing this target value and the value computed in game with the flight model.
[Version]
The [Version] section provides version information for the configuration file. In Microsoft Flight Simulator 2024, major versions should always be at least equal to 1.
Note that this section information is mandatory and should always be included.
| Parameter | Description | Type | Required |
|---|---|---|---|
major | Major CFG file version number, values must be greater than 0. | Integer | Yes |
minor | Minor CFG file version number, values must be greater than 0. | Integer | Yes |
[TARGET_PERFORMANCE]
This section provides general information for the aircraft performance. The available parameters are:
Parameter
Description
Type
Required
full_flap_full_weight_poweron_stall_speed
The full weight power on stall speed with full flaps, in kias.
1 Float or
List of 2 Floats
No
no_flap_full_weight_poweron_stall_speed
The no weight power on stall speed with full flaps, in kias.
no_flap_max_lift_coef
The maximum lift coefficient with no flaps.
stall_aoa
The stall angle of attack, in degrees.
no_flap_zero_lift_aoa
The zero lift AoA with no flaps, in degrees.
no_flap_min_drag_aoa
The minimum drag AoA with no flaps, in degrees.
no_flap_min_drag_coef
The minimum drag coefficient with no flaps.
no_flap_min_drag_lift_coef
The minimum drag lift coefficient with no flaps.
no_flap_induced_drag_coef
The induced drag coefficient with no flaps.
full_flap_max_lift_coef
The maximum lift coefficient with full flaps.
full_flap_zero_lift_aoa
The zero lift AoA with full flaps, in degrees.
full_flap_min_drag_aoa
The minimum drag AoA with full flaps, in degrees.
full_flap_min_drag_coef
The minimum drag coefficient with full flaps.
full_flap_min_drag_lift_coef
The minimum drag lift coefficient with full flaps.
full_flap_induced_drag_coef
The induced drag coefficient with full flaps.
no_flap_full_weight_glide_speed
The full weight glide speed with no flaps, in kias.
no_flap_full_weight_vert_glide_speed
The full weight vertical glide speed with no flaps, in ft per minute.
no_flap_full_weight_best_glide_finesse
The full weight best glide finesse with no flaps.
full_flap_full_weight_glide_speed
The full weight glide speed with full flaps, in ft per minute.
full_flap_full_weight_vert_glide_speed
The full weight vertical glide speed with full flaps, in ft per minute.
best_max_weight_climb_angle_speed
The maximum weight best climb angle speed, in kias.
best_max_weight_angle_of_climb
The maximum weight best angle of climb, in degrees.
best_max_weight_climb_rate_speed
The maximum weight best climb speed, in kias.
best_max_weight_climb_rate
The maximum weight best climb rate, in ft per minute.
full_flap_best_max_weight_climb_rate
The maximum weight best climb rate with full flaps, in ft per minute.
max_endurance_speed
The best endurance speed, in kias.
max_range_speed
The best range speed, in kias.
optimum_cruise_speed
The optimum cruise speed, in kias.
max_speed_level_flight_max_power
The maximum speed in level flight at maximum continuous power, in kias.
full_flap_max_speed_level_flight_max_power
The maximum speed in level flight at maximum continuous power with full flaps, in kias.
cruise_speed_level_flight_75pctpower
The cruise speed in level flight at set power, in kias.
no_flap_max_vert_dive_speed_0pctpower
The maximum vertical dive speed with 0% power and no flaps, in kias.
full_flap_max_vert_dive_speed_0pctpower
The maximum vertical dive speed with 0% power and full flaps, in kias.
no_flap_max_flat_fall_speed_0pctpower
The maximum flat fall speed with 0% power and no flaps, in kcas.
[DOUBLE_CHECKS]
This section is used to check the aircraft geometry. Available parameters are:
Parameter
Description
Type
Required
wing_area
The area of both wings and fuselage overlap, in sqft.
1 Float or
List of 2 Floats
No
wing_span
The wing span from wingtip to wingtip, in ft.
htail_area
The area of the horizontal tail including elevator, in sqft.
htail_span
The span of the horizontal tail including elevator, in ft.
vtail_area
The area of the vertical tail including elevator, in sqft.
vtail_span
The span of the vertical tail including elevator, in ft.
max_gross_weight
The maximum gross weight, in lbs.
empty_weight
The empty weight, in lbs.
max_hp
The maximum piston engine power output, in hp.
[PERFORMANCE_REPORT]
This section permits you to give an output directory to save a *.csv file too that contains all the information from this configuration file. Available parameter is:
| Parameter | Description | Type | Required |
|---|---|---|---|
file_path | The full file path (and file name) to save the CSV file, eg:
| String | No |

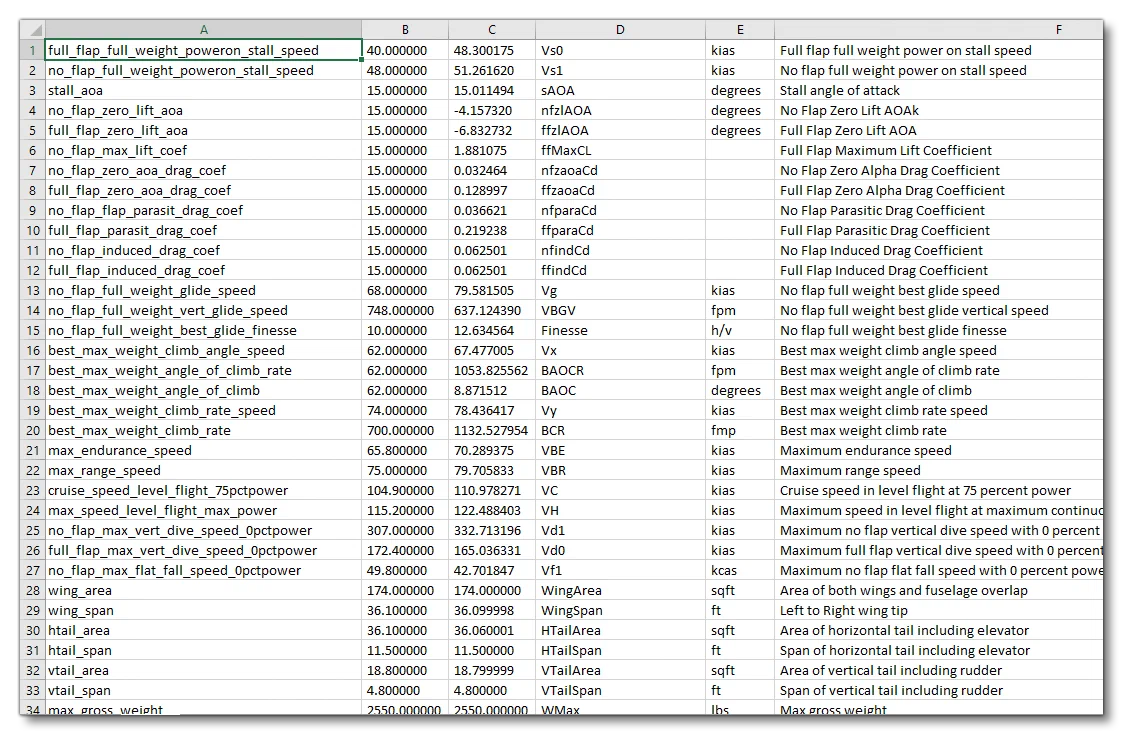

The output will look something like this:
Note that column “B” represents the target value for the parameter, while column “C” represents the actual computed value for the aircraft.
