Fuel System Examples

FUEL SYSTEM EXAMPLES

It can be complex to set up a Modular Fuel System, and so on this page we provide two examples to help you. These samples cover a simple aircraft (like the Cessna) and a complex aircraft (like the A320 Neo), and provides both a visual schematic for the systems being created, and the resulting CFG settings.

Simple Aircraft

The fuel system for small aircraft is a very simple one, as it's pretty much a single straight line connection between the tanks and the engine. The diagram below shows the chematic for such a simple system, as used in a small aircraft like the C172:

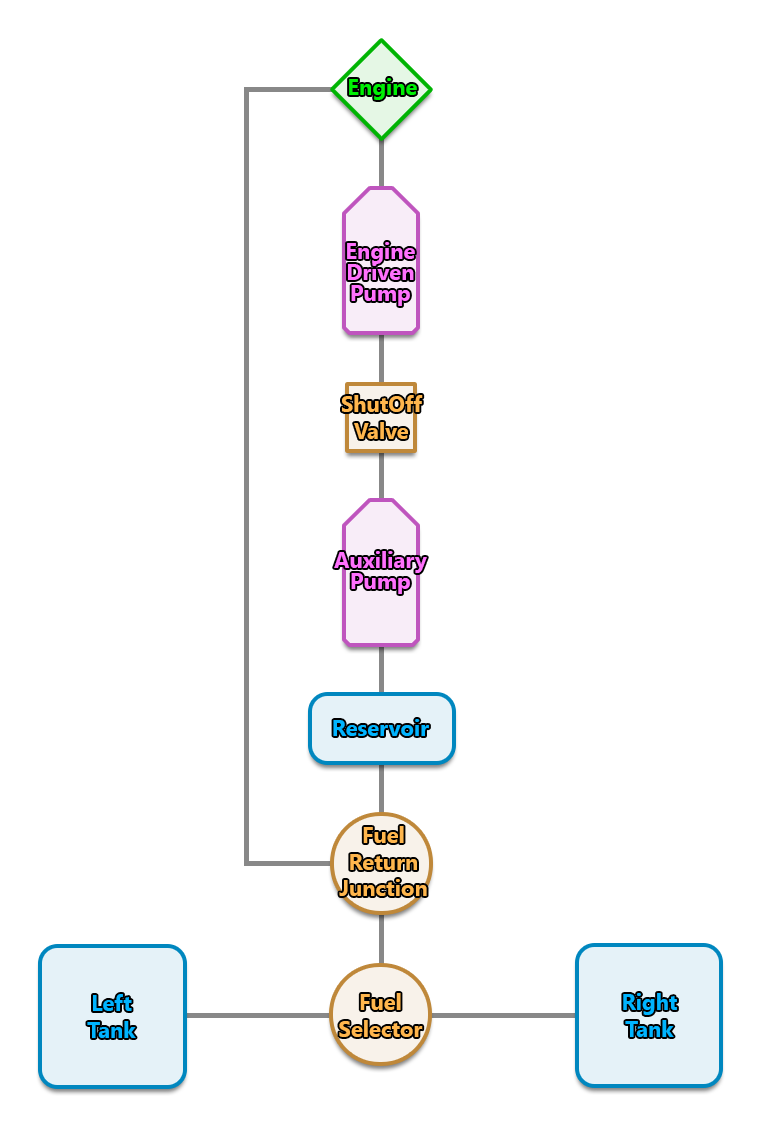

Simple Hydraulic System Schematic

The CFG file contents for the components in this system would look something like this (this is lifted directly from the C172):

[FUEL_SYSTEM]
Version = Latest
fuel_type = 1
engine.1 = Name:Engine #Title: #Index:1 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, LeftWingDamageLow, RightWingDamageLow
tank.1 = Name:LeftTank #Title:TT:MENU.FUEL.LEFT_TANK #Capacity:28 #Unusablecapacity:1.5 #Position:-3.6, -3.1, 2.9 #Inputonlylines:-3.6, -3.1, 2.9 #Outputonlylines:-3.6, -3.1, 2.9 #Droptimer:0 #Priority:0 #WearAndTearCollision:LeftWingDamageHigh, NoseDamageMedium, TailTopDamageMedium, TailBottomDamageMedium, RightWingDamageLow
tank.2 = Name:RightTank #Title:TT:MENU.FUEL.RIGHT_TANK #Capacity:28 #Unusablecapacity:1.5 #Position:-3.6, 3.1, 2.9 #Inputonlylines:-3.6, 3.1, 2.9 #Outputonlylines:-3.6, 3.1, 2.9 #Droptimer:0 #Priority:0 #WearAndTearCollision:RightWingDamageHigh, NoseDamageMedium, TailTopDamageMedium, TailBottomDamageMedium, LeftWingDamageLow
tank.3 = Name:Reservoir #Title:TT:MENU.FUEL.RESERVOIR_TANK #Capacity:1.6 #Unusablecapacity:0 #Position:0, 0, 0 #Inputonlylines:0, 0, 0 #Outputonlylines:0, 0, 0 #Droptimer:0 #Priority:-1 #BlocksPressure:False #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, LeftWingDamageLow, RightWingDamageLow
junction.1 = Name:FuelSelector #Title: #Option:LeftTankToFuelSelector, FuelSelectorToFuelReturnJunction #Option:LeftTankToFuelSelector, RightTankToFuelSelector, FuelSelectorToFuelReturnJunction #Option:RightTankToFuelSelector, FuelSelectorToFuelReturnJunction #Inputonlylines:LeftTankToFuelSelector, RightTankToFuelSelector #Outputonlylines:FuelSelectorToFuelReturnJunction #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, LeftWingDamageLow, RightWingDamageLow
junction.2 = Name:FuelReturnJunction #Title: #Option: #Inputonlylines:FuelSelectorToFuelReturnJunction, EngineToFuelReturnJunction #Outputonlylines:FuelReturnJunctionToReservoir #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, LeftWingDamageLow, RightWingDamageLow
valve.1 = Name:ShutoffValve #Title: #Destinationline: #Openingtime:0.5 #Circuit:1 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, LeftWingDamageLow, RightWingDamageLow
pump.1 = Name:AuxiliaryFuelPump #Title: #Pressure:25 #Pressurecurve:0 #Tankfuelrequired: #Destinationline:AuxiliaryPumpToValveShutoff #Type:Electric #Index:1 #Autocondition:0 #Pressuredecreaserate:0 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, LeftWingDamageLow, RightWingDamageLow
pump.2 = Name:EngineDrivenPump #Title: #Pressure:25 #Pressurecurve:0 #Tankfuelrequired: #Destinationline:EngineDrivenPumpToEngine #Type:EngineDriven #Index:1 #Autocondition:0 #Pressuredecreaserate:0 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, LeftWingDamageLow, RightWingDamageLow
line.1 = Name:LeftTankToFuelSelector #Title: #Source:LeftTank #Destination:FuelSelector #Fuelflowat1psi:0.1 #Volume:0.24 #Gravitybasedfuelflow:0 #WearAndTearCollision:LeftWingDamageHigh, NoseDamageMedium, TailTopDamageMedium, TailBottomDamageMedium, RightWingDamageLow
line.2 = Name:RightTankToFuelSelector #Title: #Source:RightTank #Destination:FuelSelector #Fuelflowat1psi:0.1 #Volume:0.24 #Gravitybasedfuelflow:0 #WearAndTearCollision:RightWingDamageHigh, NoseDamageMedium, TailTopDamageMedium, TailBottomDamageMedium, LeftWingDamageLow
line.3 = Name:FuelSelectorToFuelReturnJunction #Title: #Source:FuelSelector #Destination:FuelReturnJunction #Fuelflowat1psi:0.1 #Volume:0.24 #Gravitybasedfuelflow:0 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, LeftWingDamageLow, RightWingDamageLow
line.4 = Name:FuelReturnJunctionToReservoir #Title: #Source:FuelReturnJunction #Destination:Reservoir #Fuelflowat1psi:0.1 #Volume:0.24 #Gravitybasedfuelflow:0 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, LeftWingDamageLow, RightWingDamageLow
line.5 = Name:ReservoirToAuxiliaryPump #Title: #Source:Reservoir #Destination:AuxiliaryFuelPump #Fuelflowat1psi:0.1 #Volume:0.24 #Gravitybasedfuelflow:0 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, LeftWingDamageLow, RightWingDamageLow
line.6 = Name:AuxiliaryPumpToValveShutoff #Title: #Source:AuxiliaryFuelPump #Destination:ShutoffValve #Fuelflowat1psi:0.1 #Volume:0.24 #Gravitybasedfuelflow:0 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, LeftWingDamageLow, RightWingDamageLow
line.7 = Name:ValveShutoffToEngineDrivenPump #Title: #Source:ShutoffValve #Destination:EngineDrivenPump #Fuelflowat1psi:0.1 #Volume:0.24 #Gravitybasedfuelflow:0 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, LeftWingDamageLow, RightWingDamageLow
line.8 = Name:EngineDrivenPumpToEngine #Title: #Source:EngineDrivenPump #Destination:Engine #Fuelflowat1psi:0.1 #Volume:0.24 #Gravitybasedfuelflow:0 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, LeftWingDamageLow, RightWingDamageLow
line.9 = Name:EngineToFuelReturnJunction #Title: #Source:Engine #Destination:FuelReturnJunction #Fuelflowat1psi:0.1 #Volume:0.24 #Gravitybasedfuelflow:0 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, LeftWingDamageLow, RightWingDamageLow
Trigger.1 = Condition:Autostart_Enabled #EffectTrue:StartPump.AuxiliaryFuelPump, OpenValve.ShutoffValve, SetJunction.FuelSelector.2 #EffectFalse:StopPump.AuxiliaryFuelPump
Trigger.2 = Condition:Autoshutdown_Enabled #EffectTrue:StopPump.AuxiliaryFuelPump, CloseValve.ShutoffValve

Complex Aircraft

The fuel system of a complex aircraft - like an airliner - is a more complex setup than the one used by the simple aircraft shown above. It has multiple pumps - providing redundancy - as well as multiple tanks, and a refuel system as well:

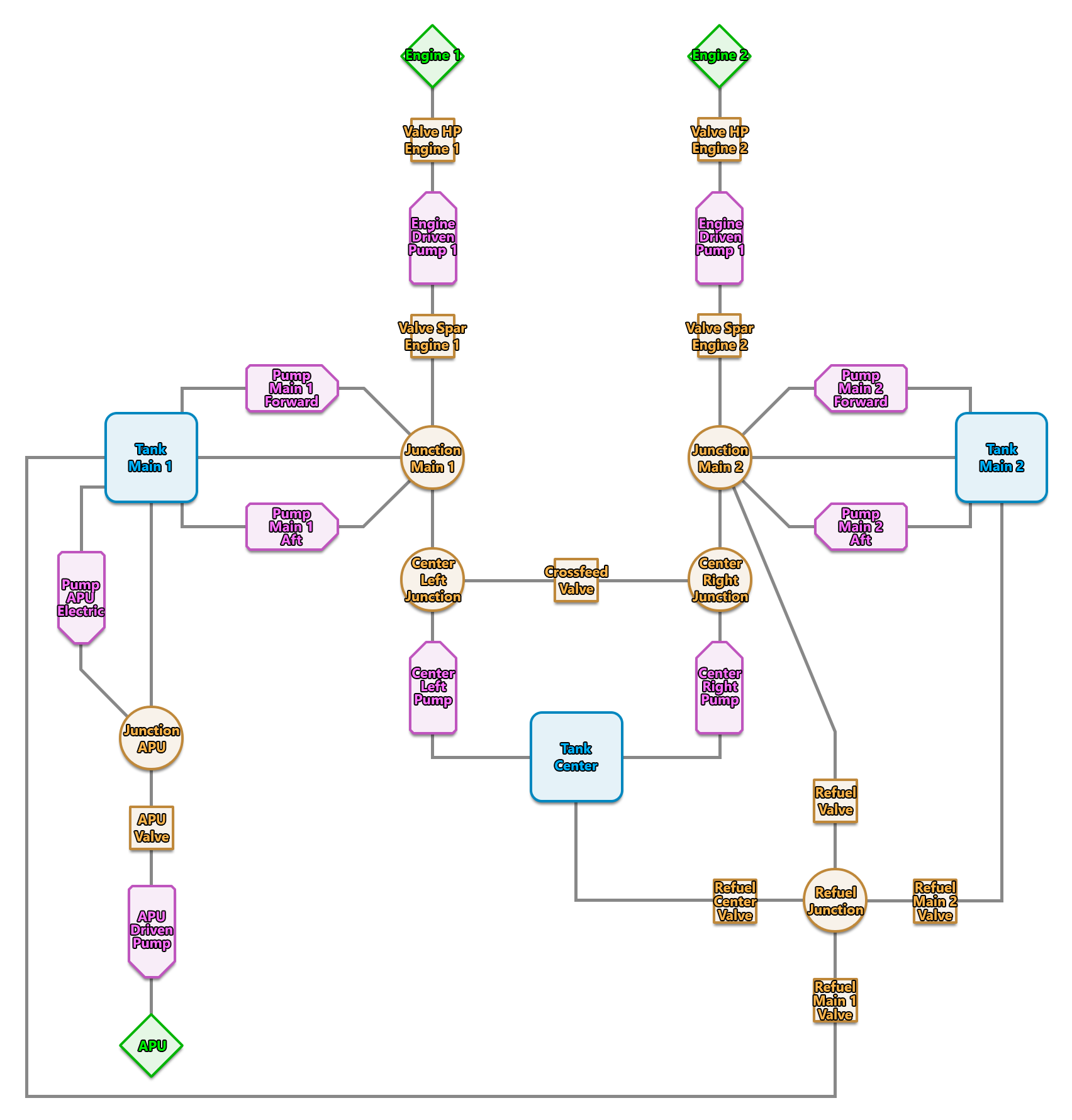

Complex Hydraulic System Schematic

The CFG file contents for the components in this system would look like this (this is lifted directly from the B737):

[FUEL_SYSTEM]
Version = Latest
fuel_type = 2 ; 1 = OCTANE 100, 2 = JET_A, 3 = OCTANE 80, 4 = AUTO GAS, 5 = JET B
APU.1 = Name:APU #FuelBurnRate:33
Engine.1 = Name:Engine1 #Index:1 #WearAndTearCollision:LeftWingDamageHigh, TailTopDamageMedium, TailBottomDamageMedium, NoseDamageMedium, AftBellyDamageMedium, ForwardBellyDamageMedium, RightWingDamageLow, EngineRightDamageLow, EngineLeftDamageHigh
Engine.2 = Name:Engine2 #Index:2 #WearAndTearCollision:RightWingDamageHigh, TailTopDamageMedium, TailBottomDamageMedium, NoseDamageMedium, AftBellyDamageMedium, ForwardBellyDamageMedium, LeftWingDamageLow, EngineLeftDamageLow, EngineRightDamageHigh
Tank.1 = Name:TankCenter #Title:TT:MENU.FUEL.CENTER_TANK #Capacity:4274 #UnusableCapacity:0 #Position:-6, 0, 1 #InputOnlyLines:ValveRefuelCenterToTankCenter #OutputOnlyLines:TankCenterToJuncCenterLeft, TankCenterToPumpCenterLeft, TankCenterToJuncCenterRight, TankCenterToPumpCenterRight #Priority:1
Tank.2 = Name:TankMain1 #Title:TT:MENU.FUEL.LEFT_TANK #Capacity:1273 #UnusableCapacity:0 #Position:-8, -13, 2 #InputOnlyLines:ValveRefuelMain1ToTankMain1 #OutputOnlyLines:TankMain1ToPumpMain1Fwd, TankMain1ToPumpMain1Aft, TankMain1ToJuncMain1, TankMain1ToPumpAPUElectric, TankMain1ToJuncAPU #Priority:2 #WearAndTearCollision:LeftWingDamageHigh, TailTopDamageMedium, TailBottomDamageMedium, NoseDamageMedium, AftBellyDamageMedium, ForwardBellyDamageMedium, RightWingDamageLow, EngineRightDamageLow, EngineLeftDamageHigh
Tank.3 = Name:TankMain2 #Title:TT:MENU.FUEL.RIGHT_TANK #Capacity:1273 #UnusableCapacity:0 #Position:-8, 13, 2 #InputOnlyLines:ValveRefuelMain2ToTankMain2 #OutputOnlyLines:TankMain2ToPumpMain2Fwd, TankMain2ToPumpMain2Aft, TankMain2ToJuncMain2 #Priority:2
Line.1 = Name:TankCenterToPumpCenterLeft #Source:TankCenter #Destination:PumpCenterLeft #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.2 = Name:TankCenterToPumpCenterRight #Source:TankCenter #Destination:PumpCenterRight #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.3 = Name:PumpCenterLeftToJuncCenterLeft #Source:PumpCenterLeft #Destination:JuncCenterLeft #WearAndTearCollision:LeftWingDamageHigh, TailTopDamageMedium, TailBottomDamageMedium, NoseDamageMedium, AftBellyDamageMedium, ForwardBellyDamageMedium, RightWingDamageLow, EngineRightDamageLow, EngineLeftDamageHigh
Line.4 = Name:PumpCenterRightToJuncCenterRight #Source:PumpCenterRight #Destination:JuncCenterRight #WearAndTearCollision:RightWingDamageHigh, TailTopDamageMedium, TailBottomDamageMedium, NoseDamageMedium, AftBellyDamageMedium, ForwardBellyDamageMedium, LeftWingDamageLow, EngineLeftDamageLow, EngineRightDamageHigh
Line.5 = Name:JuncCenterLeftToValveCrossfeed #Source:JuncCenterLeft #Destination:ValveCrossfeed #WearAndTearCollision:LeftWingDamageHigh, TailTopDamageMedium, TailBottomDamageMedium, NoseDamageMedium, AftBellyDamageMedium, ForwardBellyDamageMedium, RightWingDamageLow, EngineRightDamageLow, EngineLeftDamageHigh
Line.6 = Name:JuncCenterRightToValveCrossfeed #Source:JuncCenterRight #Destination:ValveCrossfeed #WearAndTearCollision:RightWingDamageHigh, TailTopDamageMedium, TailBottomDamageMedium, NoseDamageMedium, AftBellyDamageMedium, ForwardBellyDamageMedium, LeftWingDamageLow, EngineLeftDamageLow, EngineRightDamageHigh
Line.7 = Name:JuncCenterLeftToJuncMain1 #Source:JuncCenterLeft #Destination:JuncMain1 #WearAndTearCollision:LeftWingDamageHigh, TailTopDamageMedium, TailBottomDamageMedium, NoseDamageMedium, AftBellyDamageMedium, ForwardBellyDamageMedium, RightWingDamageLow, EngineRightDamageLow, EngineLeftDamageHigh
Line.8 = Name:JuncMain1ToValveSparEngine1 #Source:JuncMain1 #Destination:ValveSparEngine1 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.9 = Name:JuncMain2ToValveSparEngine2 #Source:JuncMain2 #Destination:ValveSparEngine2 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.10 = Name:JuncMain1ToJuncCenterLeft #Source:JuncMain1 #Destination:JuncCenterLeft #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.11 = Name:JuncMain2ToJuncCenterRight #Source:JuncMain2 #Destination:JuncCenterRight #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.12 = Name:ValveSparEngine1ToPumpEngineDriven1 #Source:ValveSparEngine1 #Destination:PumpEngineDriven1 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.13 = Name:ValveSparEngine2ToPumpEngineDriven2 #Source:ValveSparEngine2 #Destination:PumpEngineDriven2 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.14 = Name:PumpEngineDriven1ToValveHPEngine1 #Source:PumpEngineDriven1 #Destination:ValveHPEngine1 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.15 = Name:PumpEngineDriven2ToValveHPEngine2 #Source:PumpEngineDriven2 #Destination:ValveHPEngine2 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.16 = Name:ValveHPEngine1ToEngine1 #Source:ValveHPEngine1 #Destination:Engine1 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.17 = Name:ValveHPEngine2ToEngine2 #Source:ValveHPEngine2 #Destination:Engine2 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.18 = Name:TankMain1ToPumpMain1Fwd #Source:TankMain1 #Destination:PumpMain1Fwd #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.19 = Name:TankMain1ToPumpMain1Aft #Source:TankMain1 #Destination:PumpMain1Aft #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.20 = Name:TankMain1ToJuncMain1 #Source:TankMain1 #Destination:JuncMain1 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.21 = Name:TankMain2ToPumpMain2Fwd #Source:TankMain2 #Destination:PumpMain2Fwd #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.22 = Name:TankMain2ToPumpMain2Aft #Source:TankMain2 #Destination:PumpMain2Aft #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.23 = Name:TankMain2ToJuncMain2 #Source:TankMain2 #Destination:JuncMain2 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.24 = Name:PumpMain1FwdToJuncMain1 #Source:PumpMain1Fwd #Destination:JuncMain1 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.25 = Name:PumpMain1AftToJuncMain1 #Source:PumpMain1Aft #Destination:JuncMain1 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.26 = Name:PumpMain2FwdToJuncMain2 #Source:PumpMain2Fwd #Destination:JuncMain2 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.27 = Name:PumpMain2AftToJuncMain2 #Source:PumpMain2Aft #Destination:JuncMain2 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.28 = Name:PumpAPUElectricToJuncAPU #Source:PumpAPUElectric #Destination:JuncAPU #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.29 = Name:JuncMain1ToJuncAPU #Source:JuncMain1 #Destination:JuncAPU #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.30 = Name:ValveAPUToPumpAPUDriven #Source:ValveAPU #Destination:PumpAPUDriven #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.31 = Name:JuncAPUToValveAPU #Source:JuncAPU #Destination:ValveAPU #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.32 = Name:PumpAPUDrivenToAPU #Source:PumpAPUDriven #Destination:APU #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.33 = Name:TankMain1ToJuncAPU #Source:TankMain1 #Destination:JuncAPU #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.34 = Name:TankMain1ToPumpAPUElectric #Source:TankMain1 #Destination:PumpAPUElectric #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.35 = Name:JuncMain2ToValveRefuel #Source:JuncMain2 #Destination:ValveRefuel #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.36 = Name:ValveRefuelToJuncRefuel #Source:ValveRefuel #Destination:JuncRefuel #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.37 = Name:JuncRefuelToValveRefuelMain1 #Source:JuncRefuel #Destination:ValveRefuelMain1 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.38 = Name:JuncRefuelToValveRefuelMain2 #Source:JuncRefuel #Destination:ValveRefuelMain2 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.39 = Name:JuncRefuelToValveRefuelCenter #Source:JuncRefuel #Destination:ValveRefuelCenter #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.40 = Name:ValveRefuelMain1ToTankMain1 #Source:ValveRefuelMain1 #Destination:TankMain1 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.41 = Name:ValveRefuelMain2ToTankMain2 #Source:ValveRefuelMain2 #Destination:TankMain2 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Line.42 = Name:ValveRefuelCenterToTankCenter #Source:ValveRefuelCenter #Destination:TankCenter #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Junction.1 = Name:JuncCenterLeft #InputOnlyLines:PumpCenterLeftToJuncCenterLeft, TankCenterToPumpCenterLeft #WearAndTearCollision:LeftWingDamageHigh, TailTopDamageMedium, TailBottomDamageMedium, NoseDamageMedium, AftBellyDamageMedium, ForwardBellyDamageMedium, RightWingDamageLow, EngineRightDamageLow, EngineLeftDamageHigh
Junction.2 = Name:JuncCenterRight #InputOnlyLines:PumpCenterRightToJuncCenterRight, TankCenterToPumpCenterRight #WearAndTearCollision:RightWingDamageHigh, TailTopDamageMedium, TailBottomDamageMedium, NoseDamageMedium, AftBellyDamageMedium, ForwardBellyDamageMedium, LeftWingDamageLow, EngineLeftDamageLow, EngineRightDamageHigh
Junction.3 = Name:JuncMain1 #InputOnlyLines:TankMain1ToJuncMain1, PumpMain1FwdToJuncMain1, PumpMain1AftToJuncMain1 #OutputOnlyLines:JuncMain1ToValveSparEngine1 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Junction.4 = Name:JuncMain2 #InputOnlyLines:TankMain2ToJuncMain2, PumpMain2FwdToJuncMain2, PumpMain2AftToJuncMain2 #OutputOnlyLines:JuncMain2ToValveRefuel, JuncMain2ToValveSparEngine2 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Junction.5 = Name:JuncAPU #InputOnlyLines:TankMain1ToJuncAPU, PumpAPUElectricToJuncAPU, JuncMain1ToJuncAPU #OutputOnlyLines:JuncAPUToValveAPU #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Junction.6 = Name:JuncRefuel #InputOnlyLines:ValveRefuelToJuncRefuel #OutputOnlyLines:JuncRefuelToValveRefuelMain1, JuncRefuelToValveRefuelMain2, JuncRefuelToValveRefuelCenter #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Pump.1 = Name:PumpCenterLeft #Pressure:23 #TankFuelRequired:TankCenter #DestinationLine:PumpCenterLeftToJuncCenterLeft #Type:Electric #Index:1 #WearAndTearCollision:LeftWingDamageHigh, TailTopDamageMedium, TailBottomDamageMedium, NoseDamageMedium, AftBellyDamageMedium, ForwardBellyDamageMedium, RightWingDamageLow, EngineRightDamageLow, EngineLeftDamageHigh
Pump.2 = Name:PumpCenterRight #Pressure:23 #TankFuelRequired:TankCenter #DestinationLine:PumpCenterRightToJuncCenterRight #Type:Electric #Index:2 #WearAndTearCollision:RightWingDamageHigh, TailTopDamageMedium, TailBottomDamageMedium, NoseDamageMedium, AftBellyDamageMedium, ForwardBellyDamageMedium, LeftWingDamageLow, EngineLeftDamageLow, EngineRightDamageHigh
Pump.3 = Name:PumpMain1Fwd #Pressure:10 #TankFuelRequired:TankMain1 #DestinationLine:PumpMain1FwdToJuncMain1 #Type:Electric #Index:3 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Pump.4 = Name:PumpMain1Aft #Pressure:10 #TankFuelRequired:TankMain1 #DestinationLine:PumpMain1AftToJuncMain1 #Type:Electric #Index:4 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Pump.5 = Name:PumpMain2Fwd #Pressure:10 #TankFuelRequired:TankMain2 #DestinationLine:PumpMain2FwdToJuncMain2 #Type:Electric #Index:5 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Pump.6 = Name:PumpMain2Aft #Pressure:10 #TankFuelRequired:TankMain2 #DestinationLine:PumpMain2AftToJuncMain2 #Type:Electric #Index:6 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Pump.7 = Name:PumpAPUElectric #Pressure:5 #TankFuelRequired:TankMain1 #DestinationLine:PumpAPUElectricToJuncAPU #Type:Electric #Index:7 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Pump.8 = Name:PumpAPUDriven #Pressure:5 #DestinationLine:PumpAPUDrivenToAPU #Type:APUDriven #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Pump.9 = Name:PumpEngineDriven1 #Pressure:5 #DestinationLine:PumpEngineDriven1ToValveHPEngine1 #Type:EngineDriven #Index:1 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Pump.10 = Name:PumpEngineDriven2 #Pressure:5 #DestinationLine:PumpEngineDriven2ToValveHPEngine2 #Type:EngineDriven #Index:2 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Valve.1 = Name:ValveHPEngine1 #DestinationLine:ValveHPEngine1ToEngine1 #OpeningTime:1.5 #Circuit:1 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Valve.2 = Name:ValveHPEngine2 #DestinationLine:ValveHPEngine2ToEngine2 #OpeningTime:1.5 #Circuit:2 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Valve.3 = Name:ValveSparEngine1 #DestinationLine:ValveSparEngine1ToPumpEngineDriven1 #OpeningTime:2 #Circuit:3 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Valve.4 = Name:ValveSparEngine2 #DestinationLine:ValveSparEngine2ToPumpEngineDriven2 #OpeningTime:2 #Circuit:4 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Valve.5 = Name:ValveCrossfeed #OpeningTime:3 #Circuit:5 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Valve.6 = Name:ValveAPU #DestinationLine:ValveAPUToPumpAPUDriven #OpeningTime:2 #Circuit:6 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Valve.7 = Name:ValveRefuelMain1 #DestinationLine:ValveRefuelMain1ToTankMain1 #OpeningTime:2 #Circuit:7 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Valve.8 = Name:ValveRefuelMain2 #DestinationLine:ValveRefuelMain2ToTankMain2 #OpeningTime:2 #Circuit:8 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Valve.9 = Name:ValveRefuelCenter #DestinationLine:ValveRefuelCenterToTankCenter #OpeningTime:2 #Circuit:9 #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Valve.10 = Name:ValveRefuel #DestinationLine:ValveRefuelToJuncRefuel #WearAndTearCollision:NoseDamageHigh, TailTopDamageHigh, TailBottomDamageHigh, AftBellyDamageMedium, ForwardBellyDamageMedium, EngineLeftDamageMedium, EngineRightDamageMedium, LeftWingDamageLow, RightWingDamageLow
Trigger.1 = Name:"" #Condition:Autostart_Enabled #EffectTrue:OpenValve.ValveHPEngine1, OpenValve.ValveSparEngine1, OpenValve.ValveHPEngine2, OpenValve.ValveSparEngine2, StartPump.PumpMain1Fwd, StartPump.PumpMain1Aft, StartPump.PumpMain2Fwd, StartPump.PumpMain2Aft, StartPump.PumpCenterLeft, StartPump.PumpCenterRight, StartPump.PumpAPUElectric
Trigger.2 = Name:"" #Condition:Autoshutdown_Enabled #EffectTrue:CloseValve.ValveHPEngine1, CloseValve.ValveSparEngine1, CloseValve.ValveHPEngine2, CloseValve.ValveSparEngine2, StopPump.PumpMain1Fwd, StopPump.PumpMain1Aft, StopPump.PumpMain2Fwd, StopPump.PumpMain2Aft, StopPump.PumpCenterLeft, StopPump.PumpCenterRight, StopPump.PumpAPUElectric
