IO AIRCRAFT

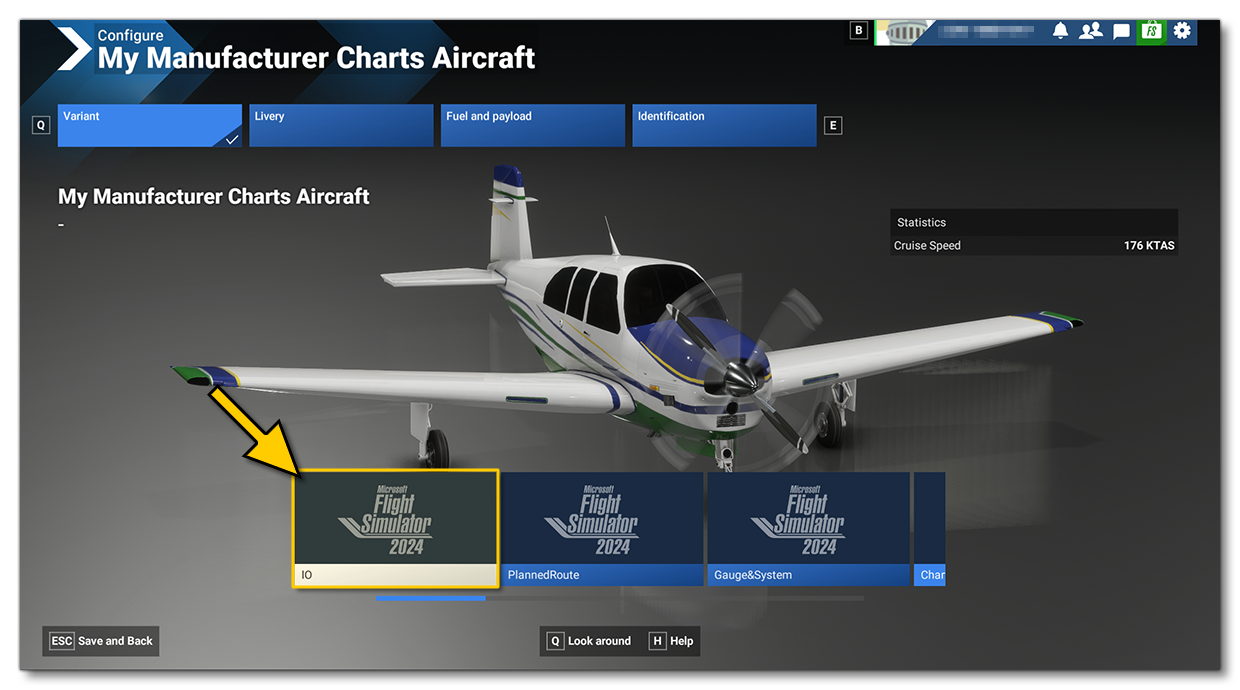

The IOAircraft aircraft is a preset of the WASMAircraft modular aircraft, which shows three different screens created using the IO API, and each one is focused on a different aspect related to reading and writing files using the API. Once the WASM Aircraft package has been built, this module will be available for flying from the aircraft selection screen:

The WasmModules.sln file (found in the Sources folder of the project) will allow you to compile the source-code with Microsoft Visual Studio (2019 or 2022) in order to create the IOModule.wasm WebAssembly module which will then be loaded by the game. Once compiled, the module will automatically be copied into the following folder:

[ROOT]\PackageSources\SimObjects\Airplanes\MyCompany_Wasm_Aircraft\presets\mycompany\IOAircraft\panel

 

Note that if you make changes to the C++ code and recompile the IO WASM module, you will have to build your package again. This can be done while the plane is used within the simulation.

 

 

Testing

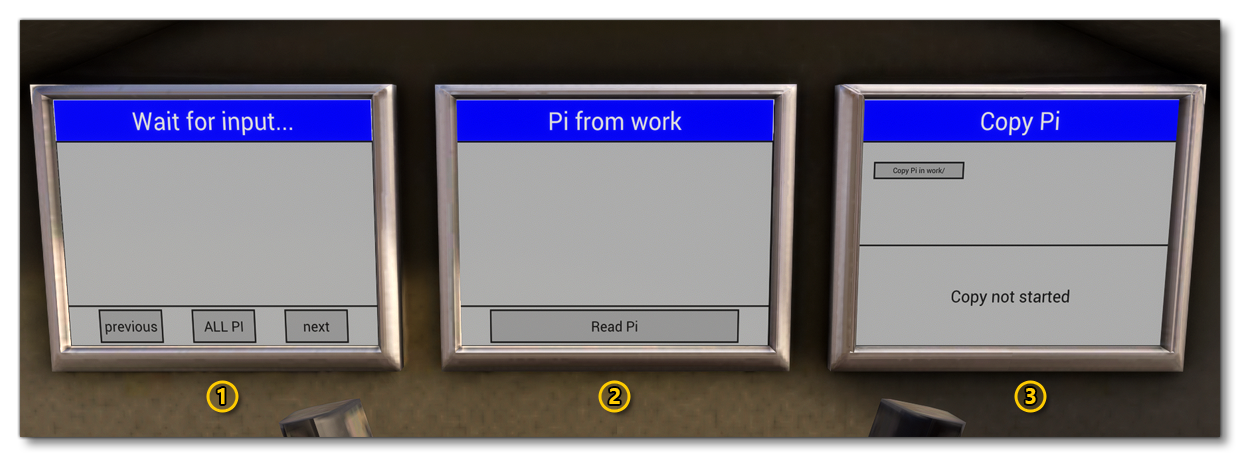

Once you have built the aircraft and selected it, you can go into a Free Flight and you will see three panels in the cockpit, looking something like this:

 

These screens illustrate the following:

 

1. On this screen the value of Pi is displayed. Either as a full value (using the ALL Pi button) or in parts (using the previous / next buttons). This value has been read from the pi.txt file located in the Data folder of the package.
    
2. This screen shows how a file can be read from the work folder. If the file exists (see screen 3, below), then clicking on the Read Pi button will read pi from the copy of the pi.txt made in the work folder and display it on the screen.
     
3. This screen has a single button - Copy Pi in work/ - which, when clicked, will copy the pi.txt file into the aircraft work folder. The work folder can be accessed from any WASM module, and in this example it is used by Screen 2 to read from the copied file and display pi.
