THE INPUT DEVICE EDITOR

The Input Device Editor is used to setup a new device for use with Microsoft Flight Simulator 2024. This editor is primarily designed for use by device manufacturers so they can add support for their devices without having to request that they are integrated into the simulation in an update. However it can also be used by 3rd parties to add support for lesser-known devices, or any device that the manufacturer has not officially created support for. You can find out how to use this editor on the following page:

• Device And Transversal Profiles

 

 

Overview

The Input Device Editor can be opened directly from the Editors menu, or - and this is the more common method for opening it - it'll be opened from The Project Editor when you create or edit a device package. The editor itself looks like this:

 

At the top of the window you have the various menu items (explained below), and then underneath that you have the Package information, and the Asset Group being edited (which can be changed using the Select... button if you have multiple devices defined in the same package). The rest of the options shown are as follows:

 

• File: The path the device XML file. You can change this from the drop down menu ▼, or you can use the ✎ button to rename it, the 🗑 button do delete it, or the + button to add a new file.

 

• Device: This is the device that is being edited, based on the list of devices that are natively supported, and any devices previously defined in the package or other add-ons.

 

• Product ID: The unique USB ID for the device.

 

• Composite ID: This is used to identify a device when it is a part of a multi-part device where each part has the same Product ID.

 

• Device Type: Identifies the type of device based on the input protocols it uses, which can be one of the following:
  • Direct Input - A generic stick / device.
  • DualSense - A PS5 controller.
  • Keyboard - A keyboard.
  • Mouse - A mouse.
  • XBox Gamepad - An XBox One controller.
  • XBox Series Stick - An XBox One compatible joystick.
  • XInput - An XInput device.
  • XR Controller - Left and right VR/AR controllers.
  • Tobii - A Tobii controller.

 

• Display Name: The name of the controller, as shown to the user in the UI.

 

• Priority: This sets the priority in the UI for the device profile, expressed as an integer, where a lower value will represent a higher priority in the UI list (ie: lower values push the controller further towards the top of the list).

 

 

Merge Icons

Merge icons are those icons that show inputs as icons merged with text in the simulation. Much of this is handled automatically and all you have to do here is link specific inputs form the device being defined with icons which you add. Icons should first be added into the Icons section, which is done simply by clicking the Import... button. Once clicked you can select one or more icons (authored as *.svg) to add into the editor, and they will all be shown in the Icons group:

 

Having added the icons you can then create the merge icons entries by clicking on the Add Merge Icons... button. The interface will change to show you the following options:

 

• Inputs: This section is where you define one or more device inputs to associate with an icon. Clicking the + button will add a new input:
  Here you can click on the button then move the device or press a button to have the editor automatically pick up the input and add it to the input field. Alternatively, you can click the ▼ button to open a list of available inputs and then select one. If you wish to remove an input, simply click the X button. If you wish to associate an icon with multiple inputs, or combined inputs, then you can use the + button to add more inputs to the MergeIcon setup.

 

• Icon: Clicking the ... button will open the list of added icons and you can select the one you wish to use for the MergeIcon from the sub-window that opens. This window also has an Import... button, and you can import an Icon for use from here.

 

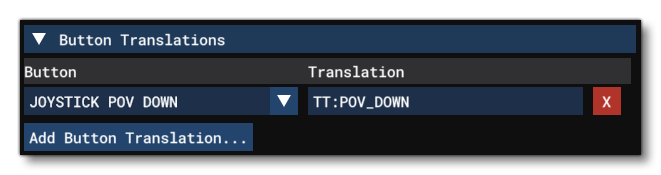

• Translation: Here you can give the text to be used for the MergeIcon, when the UI requires it, for example "Left Shoulder Press" . This text can be in English if you have no translations, or you can supply a TT: string to link the text to a translation file (see LOC Files (Localization) for more information).

 

You can repeat this process until you have applied MergeIcon settings for all possible inputs.

 

 

Menus

The top of the Input Device Editor has a number of menu options, explained below.

 

 

File

The following File options exist for the Device Editor:

 

• Save

  This option is used to save the device configuration XML file to the package sources.

 

 

View

The following view options exist for the Device Editor:

 

• Device Keys

  Selecting this option will open the Device Keys window:
  This window shows each of the different "base" controller categories as tabs, and each tab shows the input strings (Key Names) that these devices transmit, along with the numeric value associated with the string. All controllers that can be used by the simulation will fall into one of these categories and use the strings associated with that category. As such, this window is for reference only, primarily for when you need to set up a device without actually having it available or plugged into the machine.

 

• Undo History

  This option will bring up the Undo History window:
  This window shows the full list of actions that have been performed since the main Device window has been opened. You can click on any one of them to go back or forward between the different undo/redo states.

 

 

Options

The following additional options exist for the controller setup:

 

• Split Axis

  This option will tell the simulation to differentiate between the +/- inputs on the X / Y / or Z axis. For example, when not checked, the simulation will interpret a joystick stick left and right as simply "Joystick LAXIS X" input. However, when checked, this will now be interpreted as "Joystick LAXIS X-" for moving the jotsick left, and "Joystick LAXIS X+" for moving the joystick right.

 

• Split POV / Hatswitch

  This option will tell the simulation to differentiate the movement of POV hat-switches. For example, when not checked, the simulation will interpret all POV movement (left, up, etc...) as simply "Joystick POV" input. However, when checked, this will now be split based on direction such that left is now "Joystick POV Left", up is "Joystick POV Up", etc...

 

• Override Axis...

  This option allows you to set overrides for the various analaogue axis response curves on a global level (ie: changes made here will change axis input response for all actions using that input). Selecting the option will open a small window asking you to select the axis to override, and after making a selection the following window will open:
  From this window you can adjust the following parameters related to the different analog axis:
  • Sensitivity+ - Changes how sensitive the positive side of the axis is.
  • Sensitivity- - Changes how sensitive the nective side of the axis is.
  • Neutral - Shifts the neutral zone to the positive or negative side.
  • Deadzone - Expands or contracts the deadzone from the central (neutral) position of the device.
  • Out Deadzone - Expands a deadzone from the maximal input position of the device.
  • Response rate - This will change the amount of temporal smoothing applied to inputs from the device. Set to -1 to disable.

 
