CONTROLTOWER OBJECTS

A ControlTower object is an object element used to add an ATC tower to an airport. When you select this object type you will be presented with a list of different scenery object elements listed in the Objects window:

Since towers are considered scenery objects all scenery objects will be shown in the list, but you can use the filter at the top of the Objects window to narrow down the search to the objects that you want. Once you have found the tower that you want to add to the airport, click the Add button, and then use the Translate Gizmo to position the tower where you want, or you can enable One-Click Placing and simply click in the world to place it. You may also use the Rotation Gizmo to change the angle the element is shown at, as well as the Scale Gizmo to change its size.

IMPORTANT! Tower objects require one or more Airport Objects to be present in the scene, and must be added to an airport group in The Scenery Editor. If no airport is present then they cannot be used. Also note that if they are placed too far away (ie: outside the airport Object Test Radius) then they will not be rendered.

Once you place a ControlTower in an airport, the Scenery Editor will show a ControlTower group with a single child that is the tower that was just placed. Both the group and the Tower object have properties that can be set, explained below.

 

 

ControlTower (Group) Properties

ControlTower groups have the following Properties which can be edited:

• Name

  This is the name of the object group.

 

• Display Name

  This is the name of the element group as it will be displayed in the The Scenery Contents List. This can be edited and is helpful for identifying elements when you have a lot of items in the content list.

 

• Override Size

  The size of the tower object will be based on the mesh the object uses, but will be modified based on the size of the airport that it belongs to. Using this option you can override this and change the size to something other than the default. Note that this option will only affect the generic tower object, which is procedurally generated. See the Procedural ControlTowers section for more information.

 

• Override Level

  The height of the tower object will be based on the mesh the object uses, but will be modified based on the size of the airport that it belongs to. Using this option you can override this and change the height to something other than the default. Note that this option will only affect the generic tower object, which is procedurally generated. See the Procedural ControlTowers section for more information.

 

 

Tower Object Properties

Tower objects have the following Properties which can be edited:

• Name

  This is the name of the tower object element as defined from its file.

 

• Display Name

  This is the name of the tower as it will be displayed in the The Scenery Contents List. This can be edited and is helpful for identifying elements when you have a lot of items in the content list.

 

• Assign Instance ID

  Clicking this button will create a GUID-formatted Instance ID unique to the instance of the tower placed within the simulation. This is distinct to the GUID value (explained below), as the GUID will be shared by all elements of the same object, while the instance ID will be unique to each instance of that object. This can be useful for many things like when creating mission scripts (for example).

 

• GUID

  This shows the unique GUID for the tower object element. This ID value is for the base object element itself, and will be shared with all instances of the element that are placed in the world. Use the Assign Instance ID button if you require a unique GUID for a specific instance of the object element. Note that if you need to use this ID elsewhere, you can click on the Copy button to copy it to the clipboard.

 

• Package

  This shows the name of the package(s) that the currently selected tower object comes from.

 

• Snap To Ground

  This option is enabled by default, and will "snap" the tower to the ground so that - regardless of the terrain height - the element will always be at ground level, even when moving it. Enabling this means that the altitude Gizmo does nothing, while disabling this will permit you to change the altitude. When this is disabled, you will have a new option present in the Properties window:

  • Offset To Ground

    This value is the altitude from the ground for the object, and editing it will raise or lower the element (and changing the altitude using the Translate Gizmo will also change this value automatically).

 

• Snap To Normal

  When enabled, the tower object element will change orientation based on the terrain surface normal underneath the center-point of the tower. When disabled, it will maintain the default orientation regardless of the terrain underneath (or the orientation which is set using the Rotation Gizmo and note that when enabled the Rotation Gizmo will only affect the horizontal axis around the center of the element). This option is disabled by default.

 

• Snap To Building

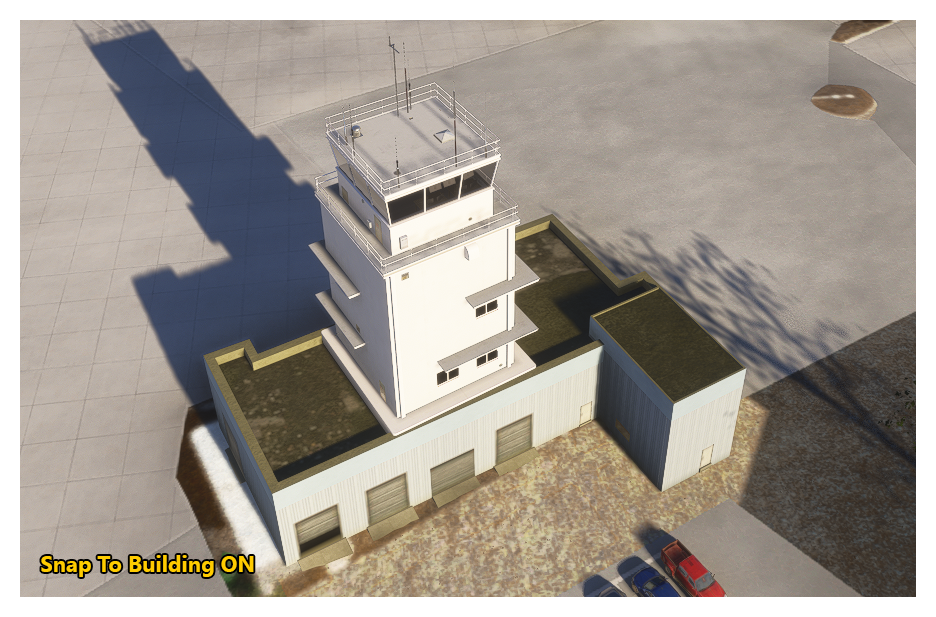

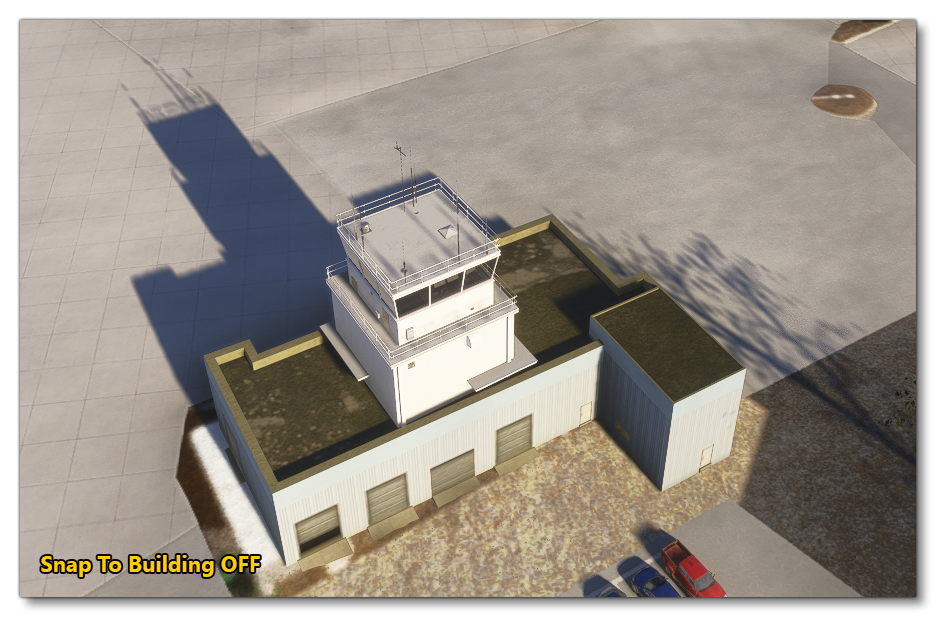

  When enabled, the tower object element will snap to the height of any procedural building that is at the position where it has been placed. This option is disabled by default. To see how enabling / disabling this option affects the object placement, mouse over the image below:



 

• Cast Shadow

  This option will enable or disable the ability for the tower model to cast a shadow on the terrain. This option is enabled by default.

 

• Hide on TIN

  When checked, this option will hide the tower object element unless the TIN data is unavailable, for example when the user is offline, at which point it will be visible. The option is disabled by default.

 

• No Snow

  This option will enable or disable snow on the tower, where appropriate. This option is disabled by default.

 

• No Decal

  This option will enable or disable the ability to display Decal Objects on the control tower object. This option is disabled by default.

 

• Replace With

  The Replace with... button permits you to select a different Scenery object / SimObject / SimPropContainer for the tower object element:
  Depending on what you select from the window these options open, the properties for the object may change.

 

• Convert To SimPropContainer

  The Convert To SimObjectContainer button permits you to convert the current Control Tower object into a SimPropContainer Object. Clicking this button will open a new sub-window with the following options:


  • Name: The name that you want to give the new SimProp.

  • Package: The package that the SimProp will belong to.

  • SimPropContainerLib: The SimPropContainer library to add the SimProp to (a new one can be created here if none exist already).

  • Reference Point: If the object has reference points defined for it then they will be listed here and can be selected as the main "central" point to be used for placing the SimProp.

  IMPORTANT! Creating a SimPropContainer in this way means that the object model becomes the pivot reference for the entire SimPropContainer. From this point on, if you edit the model and re-export, you should not change the pivot position in your modelling program otherwise you will be changing the entire SimPropContainer reference pivot.

 

• Has Beacon

  Selecting this option will permit you to attach a beacon to the object element.
  NOTE: This option is designed for object elements that have a custom model/mesh assigned to them, as you need to supply the name of an attach point which is a node on the model.When enabled you will be presented with the following extra options:


  • Attach Point Name: The name of the attach point node on the model.

  • Attach Instance ID: This is a unique GUID which can be used to identify the beacon.

  • Beacon Type: The type of beacon to be added, either CIVILIAN, MILITARY or CANADIAN.

  • Beacon Base: The type of base to give the beacon, either SEA_BASE, AIRPORT or HELIPORT.

 

 

Procedural ControlTowers

When you create the ControlTower group, you need to pick an object from the Objects list and that will be added to the scene as the Control Tower. However, it may be that you don't have an appropriate object, or that you don't want to model one yourself and create a new object just for this airport. In these cases, you can delete the object from the scenery editor ControlTower group and just leave the group. When you do that, the ControlTower group will be converted into a procedural control tower and generate a "generic" control tower model for the airport, which can then be changed based on the object properties, as shown below:
