TAXIWAY PARKING OBJECTS

A Taxiway Parking object is an object element that is used to add an aircraft or ground vehicle parking area to an airport in the world. When you select this object type you will be presented with a list of different object elements listed in the Objects window:

Different Taxiway Parking Object Elements Listed In The Objects Window

When you click the Add button, the Taxiway Parking object will be added to the scene and can be positioned using the Gizmo. Once positioned, the taxiway parking Properties can be edited.

IMPORTANT! Taxiway Parking objects require one or more Airport Objects to be present in the scene, and must be added to an airport group in The Scenery Editor. If no airport is present then they cannot be used. Also note that if they are placed too far away (ie: outside the airport Object Test Radius) then they will not be rendered.

A Taxiway Parking Object Placed In The WorldWhen placed in the world, it will be displayed as a circular area, and you can use the Gizmo to not only place the parking spot, but to rotate it - you can see a small arrow indicating the orientation - as well as change the scale of the object. When the parking spot is for aircraft, the scale will affect the size of the aircraft that can use the parking spot.

 

Connecting A Taxiway Path

Once you have placed the taxiway parking spot in the world, it will generally need to be connected to TaxiwayPoint Objects using TaxiwayPath Objects. To do this you must first select the taxiway parking object in the world, then use Ctrl and left mouse button to select the taxiway point that you want it to connect to. You can then do one of the following things to add a path between the two:

  • Select the Taxiway Path Object in the Objects window and click Add.
  • Use the Right Mouse Button and select the Create Path option.

This will then add a Taxiway Path object between the point and the parking, which will look like this in the world:

A Taxiway Path Linking A Parking Spot And A Taxiway Point

NOTE: Taxiway Paths added to link Parking Spots with Taxiway Points will not have a surface texture and should be placed over Apron Objects if you require a texture.When you connect the point to the parking, the parking spot heading will be rotated to be parallel to the path. Also note that you can connect more than one Taxiway Path point to a Parking spot if required (although you wouldn't normally), and you can remove the path by selecting it and using the Delete key on the keyboard.

 

 

Jetways

Depending on the Type of parking that you add, you may get an error shown in The Scenery Editor telling you that you need to add a Jetway:

An Error Adding Jetways To An AirportSpecifically, this error will occur when you have set the parking as being any of the GATE_ types. Gates require a jetway to connect any parked aircraft with the airport terminal, and as such you will need to add a Jetway to this kind of parking spot. For these parking spots you will have a button at the top of the Properties window, Add a Jetway, which can be used to add one and link it to the parking spot.

 

 

VDGS

Another optional addition to all types of parking spot is giving it a Visual Docking Guidance System (VDGS). The VDGS is a system used to assist aircraft to dock at the exact position in front of respective gates and one can be added to the parking spot simply by clicking the Add VDGS button at the top of the properties window. When you click this button you will see the following two options as buttons:

  • Use Default VDGS_01: Clicking this button will add a default VDGS Object to the taxiway parking object.

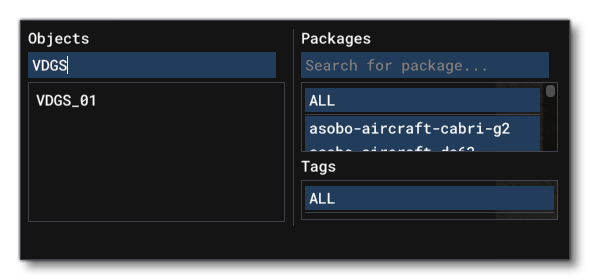

  • Use Another SimObject: Clicking this will open a "mini" object editor where you can use the various filters and package tools to find the custom SimObject to be used as the VDGS object in the scene. After selecting one, you can click the Add button to add it to the Taxiway Parking.

After adding a VDGS to the parking spot, it will be shown in the Scenery Editor content list, under the associated parking spot, along with the Jetway (if one is added).

 

 

Properties

The Properties window for a Taxiway Parking looks like this:

The Taxiway Parking Object Properties

  • Name
    This is the name of the element as defined by its object type properties.

 

  • Display Name
    This is the name of the element as it will be displayed in the The Scenery Contents List. This can be edited and is helpful for identifying elements when you have a lot of items in the content list.

 

  • Add A VDGS
    This will give you the option to add either a default VDGS or a custom SimObj VDGS. See the section on VDGS above.

 

  • Type
    This can be used to change the type of taxiway point that is being edited. You can choose one of the following types, which will be drawn with the corresponding colour in the scene:
    NOTE: Choosing RAMP_GA or GATE means that the final type of ramp/gate parking will be determined by the radius of the parking spot. However, you can force the type and override the default setting by changing this parameter to a specific value, eg: RAMP_GA_SMALL.
    • RAMP_GA (green)

    • RAMP_GA_SMALL (green)

    • RAMP_GA_MEDIUM (green)

    • RAMP_GA_LARGE (green)

    • RAMP_CARGO (green)

    • RAMP_MIL_CARGO (green)

    • RAMP_MIL_COMBAT (green)

    • GATE_SMALL (yellow)

    • GATE_MEDIUM (yellow)

    • GATE_HEAVY (yellow)

    • DOCK_GA (green)

    • FUEL (dark green)

    • VEHICLE (dark blue)

    • RAMP_GA_EXTRA (green)

    • GATE_EXTRA (yellow)

    • HELICOPTER (blue)


    Note that when the FUEL type is selected, there will be an additional option:
    • Has 3d Mesh: This checkbox is so you can decide if you want the parking space to generate a fuel mesh or not.

 

  • Heading
    The parking spot heading (oriented from the North) from -360.0° to 360.0°. This is shown in the world by a little arrow on the edge of the bounding circle. Note that this can be edited using the Rotation Gizmo.

 

  • Radius
    The parking spot radius, in meters. This will determine the size and type of aircraft that can park there (where applicable). Note that this can be edited using the Scale Gizmo.

 

  • Name
    The parking spot name. Can be any one of the following values:
    • NONE
    • PARKING
    • N_PARKING
    • NE_PARKING
    • E_PARKING
    • SE_PARKING
    • S_PARKING
    • SW_PARKING
    • W_PARKING
    • NW_PARKING
    • GATE
    • DOCK
    • GATE_A - GATE_Z

 

  • Number
    Defines the number of the taxiway parking (goes with the given name), from 0 to 3999.

 

  • Suffix
    Here you can select the suffix to be added to the taxiway parking name and number. Either NONE or a value between GATE_A and GATE_Z.

 

  • Apron Control
    Selecting this will show the option to add an New Apron Control service to the taxiway parking object. Clicking that option will then open a small window and request that you give the identifier of the airline service that is to be registered as being used for the parking spot:
    Adding An Airline Code To The Apron Controller For The ObjectAfter adding the code, click on Add to have it registered with Apron Control. Note that the parking spot object requires at least one airline code to be assigned to it, but you can add multiple airline codes and then switch between them if required, although only one of them will be used at any time. For more information, please see here: Apron Services

 

  • Passenger Access Type
    This option defines the kind of passenger access for the parking spot. Can be one of the following:
    • Bus
    • Ramp
    • Jetway

 

  • Has Number Marking

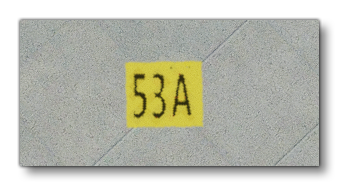

    When enabled, this will display number markings for the taxiway parking spot, as shown in the image below:
    A Taxiway Parking Spot Number
    This will also enable additional options that can be edited to position the number if required:

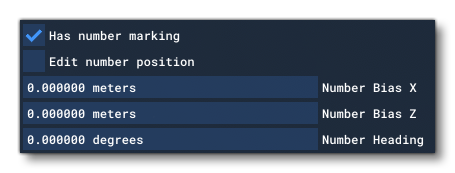

    The Has Number Marking OptionsChecking the Edit Number Position will permit you to edit the following properties:
    • Number Bias X
      This is for offsetting the position of the parking spot number along the X axis. Values are in meters.
    • Number Bias Z
      This is for offsetting the position of the parking spot number along the Z axis. Values are in meters.
    • Number Heading
      This is for changing the angle that the parking spot number is orientated, in degrees.

 

  • Parking T Offsets
    This option permits you to change the "T" position - or add more "T" positions - to the parking spot. These are approximately where the nose wheel for an aircraft should sit when parked, and you may want to have various of them if the parking can accept multiple different sizes or types of aircraft. If you click the Add button you will be shown a new input field where you can set the offset, which is in meters and calculated from the center point of the parking spot. You can add up to 4 different values, and the last one will always be connected to the center spot and the taxiway path. The image below shows a parking spot with 3 different T Offsets:
    The Taxiway Parking T OffsetsYou can remove the last T offset value added using the Remove button, and repeatedly pressing it will remove the offsets in sequence.
    NOTE: This is a purely visual effect and will have no influence on where an aircraft using the spot will actually park.

 

  • Index
    This is the identifier index assigned to this taxiway parking inside of an airport.

 

Helicopter Markings

When the Type of parking spot is set to HELICOPTER, additional marking options will be available, that - when combined- give the following result:

A Helicopter Parking Spot With All Markings Enabled

 

  • Has Touchdown Marking
    This will add an interior circle marking to the helicopter parking spot.
    The Touchdown Marking

 

  • Has Central Zone Marking
    This will add a central circle marking to the helicopter parking spot.
    The Central Zone Marking

 

  • Has Helicopter Stand Marking
    This will add an exterior circle marking to the helicopter parking spot.
    The Helicopter Stand Marking

 

  • Has Alignment Line
    This will add a painted indicator line through the parking spot, aligned with the taxiway path that the spot is attached to.
    The Center Line Marking

 

  • Is Collocated With TLOF
    This will change the exterior painted circle to be a white TLOF (touch down and lift off) area marking. Note that this requires that the Has Helicopter Stand Marking is enabled as well, otherwise it will not be visible.
    The TLOF Area Marking
