navigation_graph.cfg

The Navigation Graph Tab In The SimObject Editor

The [navigation_graph].cfg file is an optional aircraft CFG File for defining nodes and edges (connections or paths) within a SimObject or an Airport that permit interactions of some kind to occur. Navigation graph files are normally named using the following naming convention:

navigation_graph_[SimObjName]_<Identifier>.cfg
navigation_graph_[AirportICAO]_<identifier>.cfg

IMPORTANT! You cannot have a file called simply navigation_graph.cfg. This will cause issues, bith with the editor and potentially with the simulation itself. 

The [SimObjName] / [AirportICAO] part is optional, but all files should have a unique identifier string to differentiate them from other files of the same type. Below are a few examples:

navigation_graph_da62_passengers.cfg
navigation_graph_skydivers.cfg
navigation_graph_EGLL_small_gate.cfg
navigation_graph_bus_seat.cfg

 

The files you create must be placed into a folder labelled navigation_graph. The exact location of this folder will depend on whether they are for a SimObject or for an Airport. For a modular aircraft SimObject it would be one of the following:

[Aircraft Project]\PackageSources\SimObjects\Airplanes\[Aircraft Name]\common\navigation_graph\
[Aircraft Project]\PackageSources\SimObjects\Airplanes\[Aircraft Name]\presets\[Company Name]\[Aircraft Name]\navigation_graph\
[Aircraft Project]\PackageSources\SimObjects\Airplanes\[Aircraft Name]\attachments\[Company Name]\[Attachment Name]\navigation_graph\

The Payload Folder In The Package Sources

 

And for an airport it would be:

[Airport Project]\PackageSources\data\navigation_graph\

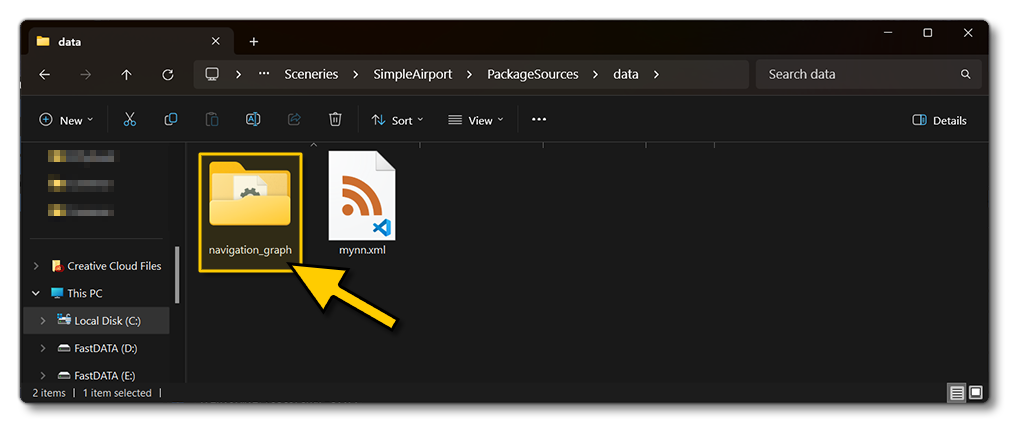

The Payload Folder In The Package Sources

 

It should be noted that we do not recommend that you edit these files by hand, and instead you should be using the Node Graph Editor, as explained on the following page:

 

Also note that for airport projects, the Node Graph Editor should be using the World Coordinate System in the MainGraph section.

 

Finally, for setting up a navigation graph for use with airport Apron Services and also the various missions available to aircraft, please see here:

 

 

[Version]

The [Version] section provides version information for the configuration file. In Microsoft Flight Simulator 2024, major versions should always be at least equal to 1.

 

Note that this section information is mandatory and should always be included.

 

Parameter Description Type Required
major Major CFG file version number, values must be greater than 0. Integer Yes
minor Minor CFG file version number, values must be greater than 0. Integer Yes

 

 

[MainGraph.N]

This section is for defining the contents of the Main Graph for the SimObject. Main graphs should be numbered from N = 0, where each subsequent MainGraph increments N by 1. Note that if indices are not consecutive, later indices will be ignored, for example, if you have MainGraph.0 and MainGraph.2, only MainGraph.0 will be considered by the simulation.

 

This is the "top level" main graph that will contain a list of all the nodes and (optionally) a list of all the edges assigned to the graph. For example:

[MainGraph.N]
nodes = SKYDIVE_PATH_NODE_0, SKYDIVE_JUMP_NODE
edges = SKYDIVE_PATH_EDGE_0, SKYDIVE_PATH_EDGE_1, SKYDIVE_PATH_EDGE_2
exclusionAreas = 4,5,6

 

Parameter Description Type Required
nodes

This is a comma separated list of the names of the nodes to be included in the Main Graph.

List of strings

 Yes
edges This is a comma separated list of the names of the edges to be included in the Main Graph.

List of integers

 No
exclusionAreas This is a comma separated list of the names of the exclusion areas to be included in the Main Graph.

List of integers

 No
massSections This is a comma separated list of the names of the mass sections to be included in the Main Graph.

List of integers

 No
coordinate_system

The coordinate system to use for the nodes in the graph. Can be either of the following:

  1. world
  2. relative

Default value is:

coordinate_system = relative
 String Yes

 

 

[SubGraph.N]

This section is for defining the contents of one or more SubGraph. SubGraphs should be numbered from N = 0, where each subsequent Sub Graph increments N by 1. Note that if indices are not consecutive, later indices will be ignored, for example, if you have SubGraph.0 and SubGraph.2, only SubGraph.0 will be considered by the simulation. Each sub graph has a list of nodes and (optionally) a list of edges which are assigned to the sub graph. For example:

[SubGraph.0]
name = SUB_GRAPH_SEATING
nodes = NODE_PASSAGE_1, NODE_PASSAGE_2
[SubGraph.1]
name = SUB_GRAPH_STEWARDS
nodes = NODE_PASSAGE_1, NODE_POST_1
edges = EDGE_PASSAGE_POST

 

Parameter Description Type Required
name

The common name assigned to the sub graph. Should only contain alpha-numeric characters and the "_" and "-" symbols.

Default value is:

name = Index
 String No
nodes

This is a comma separated list of the names of the nodes to be included in the Sub Graph.

List of strings

 Yes
edges This is a comma separated list of the names of the edges to be included in the Sub Graph.

List of strings

 No

 

 

[Node.N]

The [Node.N] section is for defining the individual nodes that will be used by both the [MainGraph.N] and any [SubGraph.N] elements that you create. When defining each node, you should start at N = 0 and increment N by 1 for each node thereafter. Each node has the following parameters:

 

Parameter Description Type Required
name

The common name assigned to the node and will be used in other parameters to reference the node, and as part of the merge process for the modular SimObject. It is not used in the XML files that reference the navigation graph (for that see Tags, below). This parameter should only contain alpha-numeric characters and the "_" and "-" symbols.

Default value is a dynamic parameter, with the form depending on whether the node is on the main graph or a sub-graph. If the node is not on the main graph, the dynamic param will simply be it's index, eg:

[Node.N]
name = Index
If the node is on a sub-graph, then it will have the name of the node it's attached to on the main graph and its index, eg:
[Node.N]
MainGraphNodeName_Index

For example:

[Node.5]
name = SKYDIVE_NODE_START_5

This node is the 5th node on the sub-graph, and is attached to the node named SKYDIVE_NODE_START on the main graph. Note that if the node on the main graph has no name defined, then the parameter will simply be formed as:

[Node.N]
name = MainGraphNodeIndex_Index
 String No
coordinate_system

The coordinate system to use for the node pos. Can be either of the following:

  1. inherited
    world
    relative

If this parameter is not included - or is set to "inherited" - the node will inherit the coordinate system defined in the [MainGraph.N] section.

 

Default value is:

coordinate_system = inherited
 String No
pos

Sets the X/Y/Z position of the node being defined relative to either:

  • The Datum Reference Point when defining nodes for the Main Graph.
  • The "parent" node if the node is part of a Sub Graph.

Default value is:

pos = 0,0,0

List of floats

 No
pbh

Sets the pitch/bank/heading of the node, relative to either:

  • The SimObject orientation if the node is part of the Main Graph.
  • The "parent" node orientation if the node is part of a Sub Graph.

Default value is:

pbh = 0,0,0

List of floats

 No
modelNode

This is where you can give a node name from the aircraft glTF to place the navigation graph node on. If supplied, the pos and pbh set for the node will be ignored, and it will be positioned and oriented based on the model node position and orientation. Note that the model node name should be enclosed in quotes "".

Default value is:

modelNode = ""
 String No
tag

This is a string that is used to name the node, and can be shared by multiple nodes within multiple files (unlike the name parameter, which should be unique to the node being defined). This name can then be used to identify the node - or group of nodes - in any mission or service XML that requires it. For example, all seat objects for passengers would be on nodes tagged as "SEATS".

Default value is:

tag = NONE
 String No
sharedSeat

This is only required if you want to have the copilot node of the navigation_graph_pilot.cfg (explained here) accept a passenger when the node does not have a copilot assigned. To use this, the node must be tagged with both the COPILOT tag and also the SIT tag, and then include this paramater, set to true.

Default value is:

sharedSeat = false
 Bool No
subgraph

The Sub Graph that the node should be added to. Note that you can only assign a node to a single sub graph, not multiple. If this parameter is included, you may also include the edgeToMainNode parameter.

Default value is:

subgraph = ""
 Integer No
loadVolume

This defines the three dimensional volume associated with the node, using values for the width/height/depth. The defined volume is the approximate space that any payload on the node would occupy (whether it is a passenger, a suitcase, a bag of rice, etc...).

Default values are:

loadVolume = 0,0,0

List of floats

 No
spawnLoad

This defines whether a load should be spawned automatically on the node. When set to true (1) then a load will be spawned based on the settings within the mission. If set to false (0) then nothing will be spawned by default. Note that this parameter is only relevant to cargo missions.

Default value is:

spawnLoad = false
 Bool No
massSection

The name of one or more [MassSection.N] to be associated with this node. The name will also be applied to the nodes of any sub-graph attached to the node, as well as the nodes of the interaction object spawned on the node (if any). Note that you may have multiple mass sections assigned to a single node, in which case they are given as a comma separated list, eg:

massSection = Rear_left_cargo, Rear_right_cargo

Default value is:

massSection = ""
 String No
node_occlusion_factor

This sets the factor with which to modify the base ambient occlusion factor for the SimObject, as set in the SimObject Editor tab using the interior_occlusion_factor parameter. If the node is on a Sub Graph, this value will instead be used to modify the Main Node factor.

Default value is:

node_occlusion_factor = 1
 Float No
distanceToNotAnimate

This defines the distance (in meters) from the camera at which any object on this node will stop being animated. If the value is set to -1, then the object will always be animated.

Default value is:

distanceToNotAnimate = -1
 Float No
projectOnGround

When this is set to true (1), the height of the node is ignored and instead the height will be that of the ground (essentially the node is projected onto the ground).

Default value is:

projectOnGround = false
 Bool No
isExit

When this is set to true (1) the node will be considered an "exit node". An exit node is one where an object actor can move to and then connect to a different navigation graph.

Default value is:

isExit = false
 Bool No
mouserectLinked

Defines a MouseRect to which the node is linked to.

Default value is:

mouserectLinked = ""
 String No
edgeToMainNode

This option is only applicable if the node being defined is part of a subgraph. In that case, when this is set to 1 (TRUE), an edge will be created between the sub graph node and the "parent" node on the Main Graph.

Default value is 0 (FALSE):

edgeToMainNode = 0
 Bool No
interactiveObject

The name of an interactive object that is to be associated with the node.

Default value is:

interactiveObject = ""
 String No
interactiveVolume

This defines the three dimensional volume associated with the node, using values for the width/height/depth. The volume given will be used to determine where interactions will be triggered.

Default values are:

interactiveVolume = 0,0,0

List of floats

 No
interactiveVolumeOffset

This defines the offset of the interactive volume from the node along the X/Y/Z axis.

Default values are:

interactiveVolumeOffset = 0,0,0

List of floats

 No
interactiveVolumeConstraint

This sets a constraint on which object actors can trigger the volume interaction. Available options are as follows:

  1. PlayerAvatarOnly - Only the player avatar
  2. PlayerAircraftOnly - Only the player aircraft
  3. PlayerOnly - Only the player avatar and/or the player aircraft.
  4. None - Any simobject

Default value is:

interactiveVolumeConstraint = "PlayerAvatarOnly"
 String No
interactionVolume Here you can add a GUID reference to a <ServiceInteraction.InteractionVolume> element of a Service Interaction XML file used by the aircraft. String No
interactionState Here you can add a GUID reference to a <ServiceInteraction.InteractionState> element of a Service Interaction XML file used by the aircraft. String No
interactionGUID.n

Here you can add one or more GUID references to the <ServiceInteraction.Interaction> elements of a Service Interaction XML file used by the aircraft. Each GUID should be assigned to a unique interactionGUID, which should be numbered from 0 and then in sequence. For example:

interactionGUID.0 = {47A41889-4F09-47D5-AE2F-D101BA03D150}
interactionGUID.1 = {6ECC5EFB-6EB4-4E0F-A30B-1A695BFA4D32}

List of strings

 No
interactionFile.n

A path of an interaction XML file to load. If the XML has a <ServiceInteraction.InteractionState> element or a <ServiceInteraction.InteractionVolume> element and the node does not already have one, then it will be assigned. Each interaction file listed will have its own spawner.

Note that it is possible to include additional parameters to be used as string substitutions within the XML. This requires that the parameter be formatted as a hashmap where:

  1. #FilePath - This key defines the path to the interaction XML
  2. #Param - this key defines one or more XML strings to be substituted.

For example:

interactionFile.0 = FilePath: InteractionsPreset\Asobo\Seat\Seatbelt # Param: SEATBELT_FASTEN:SEATBELT_C172_Pilot_Fasten

In the above example, all mentions of the string "SEATBELT_FASTEN" will instead be read as "SEATBELT_C172_Pilot_Fasten". You can pass in several parameters in this way simply by separating them with a comma, for example:

interactionFile.1 = FilePath: InteractionsPreset\Asobo\Seat\Seatbelt # Param: SEATBELT_FASTEN:SEATBELT_C208B_PAX_1_Fasten, SEATBELT_UNFASTEN:SEATBELT_C208B_PAX_1_Unfasten
 String No

 

 

[Edge.N]

The [Edge.N] section is for defining the individual edges (paths) that connect any two nodes together. When defining each edge, you should start at N = 0 and increment N by 1 for each edge thereafter.

NOTE: You can only define an edge between two nodes and no more, and an edge is always considered as two-way, ie: movement is available along the edge from the start node to the end node and vice-versa.Each edge has the following parameters:

 

Parameter Description Type Required
name

The common name assigned to the edge and will be used to reference the edge in other parameters. Should only contain alpha-numeric characters and the "_" and "-" symbols.

Default value is a dynamic parameter formed as:

name = NodeStartName_NodeEndName

For example:

name = SKYDIVE_NODE_START_SKYDIVE_NODE_1

Note that if the nodes have no names defined, then the parameter will simply be formed as:

[Node.N]
NodeStartIndex_NodeEndIndex
 String No
nodeStart The name of the [Node.N] that should be considered as the first node of the edge connection. String Yes
nodeEnd The name of the [Node.N] that should be considered as the last node of the edge connection. String Yes

 

 

[ExclusionArea.N]

The [ExclusionArea.N] section is for defining an area that will invalidate any edge that crosses it, such that no behaviour can move on it. This is useful when using interactive objects linked by multiple edges to the main graph. These areas should be defined as a set of at least 3 nodes that form a closed polygon. For example:

[ExclusionArea.0]
nodes = NODE_EXCLUDE_1, NODE_EXCLUDE_2, NODE_EXCLUDE_3, NODE_EXCLUDE_4

When defining each exclusion area, you should start at N = 0 and increment N by 1 for each area thereafter. Each exclusion area has the following parameters:

 

Parameter Description Type Required
name

The common name assigned to the exclusion area. Should only contain alpha-numeric characters and the "_" and "-" symbols.

Default value is:

name = [AreaIndex]
 String No
nodes

This is a comma separated list of the names of the nodes to be used to define the exclusion area. There must be at least three nodes in the list for a valid exclusion area to be formed.

List of strings

 Yes

 

 

[MassSection.N]

The [MassSection.N] section is used to apply the mass of the behaviours of a navigation service to the SimObject holding the navigation service. When a behaviour is attached to a SimObject, it applies (or removes) its mass at the end of each of its movements along the navigation graph, or when it gets attached or detached. The position at which its mass is applied will depend on the position defined for the station_load.N that the mass section references. For example:

[MassSection.0]
name = ecoSeats
stationLoadName = seat_rows_left
maxMass = 500

When defining each mass section, you should start at N = 0 and increment N by 1 for each section thereafter. Each mass section has the following parameters:

 

Parameter Description Type Required
name

The common name assigned to the mass section. Should only contain alpha-numeric characters and the "_" and "-" symbols.

Default value is:

name = [SectionIndex]
 String No
stationLoadName

Sets the name of the station load (as defined by the station_name.N parameter) that the mass section is being assigned to.

List of floats

 Yes
maxMass

The maximum mass (in lbs) that can be applied in this mass section. If more than the amount specified is applied, then it will be clamped to this amount.

Default value is:

maxMass = -1

Note that a value of -1 means that the value is uncapped.

 Float No
fillProportion

The value here is used to determine the default placement configuration of mass as it is added to the nodes. For example, if you have mass section [0] with a fill proportion of 4, and mass section [B] with a fill proportion of 2, then the percentage of SimObjects that will be sent to [A] is 66% and to [B], 33%.

Default value is:

fillProportion = 0

Note that a value of 0 means that there is no fill proportion and each mass area will be filled until the maxMass value is reached.

 Integer No
deck

This the name of the [Deck.N] that the mass section should be assigned to.

 Integer No

 

 

[Deck.N]

The [Deck.N] section is used to define different decks of an airliner or other multi-deck aircraft. Having defined a deck, this is then assigned to one or more [MassSection.N]. For example:

[Deck.0]
name = firstFloor
deckName = TT:DECKNAME
deckOrder = 1
[MassSection.0]
name = Pilot
stationLoadName = PILOT
maxMass = 1000
fillProportion = 1
deck = firstFloor

Currently this section is only relevant to the EFB to correctly display the nodes of multi-deck planes, with a name for each deck. When defining each deck, you should start at N = 0 and increment N by 1 for each section thereafter. Each mass section has the following parameters:

 

Parameter Description Type Required
name

The common name assigned to the deck. Should only contain alpha-numeric characters and the "_" and "-" symbols.

Default value is:

name = [DeckIndex]
 String Yes
deckName The public name of the deck, which will be used for display in the EFB. This text can be localised. String Yes
deckOrder An integer value used to set the order of the decks, with the lowest deck being at 0, and subsequent decks adding to this. Integer Yes

 
